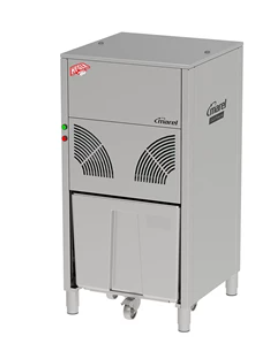

The flake ice machines MAJA SAH 85 L and SAH 170 L, with respective ice outputs of 85kg and 170kg every 24 hours, are designed for smaller requirements of fresh ice in butcheries, bakeries, supermarkets, hotels, restaurants, catering businesses and various non-food applications.
Hygienic, food-safe ice production
MAJA flake ice machines are labeled HY-GEN protected. This stands for excellent sanitary conditions:

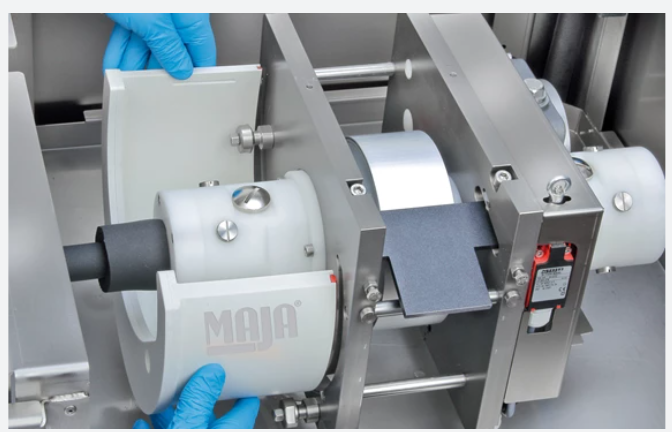

- Free access to cleaning relevant parts from all sides and without the use of tools
- Easily removable, round plastic water tank
- Water tank without built-in parts, angles, edges and screws for easy and thorough cleaning
- Automatic water pipe rinsing after 24 hours without ice production
- Special hygiene advantages in accordance with the German drinking water regulations
Refrigeration
- Integrated condensing unit in air-cooled execution (L)
- Refrigerant R449A (GWP 1397)
- Integrated heat exchanger for optimum energy efficiency
- Refrigerant stop valve and refrigerant pump-down when the machine stops
Easy operation – convenient ice handling
- Easy operation by ON/OFF pushbuttons
- Reliable SPS control unit
- Insulated ice bin EV50 on a wheeled base for convenient storage and transport of approximately 50kg of flake ice
- Solid machine structure with frame and housing in stainless steel
Specifications
|
|
MAJA SAH 85 L
|
MAJA SAH 170 L
|
|
Flake ice output *
|
85kg/24h
|
170kg/24h
|
|
Water consumption
|
0.085l/24h
|
0.170l/24h
|
|
Refrigerant type
Refrigerant charge
CO2e
|
R449A (GWP 1397)
0.7kg
1.0t
|
R449A (GWP 1397)
1.0kg
1.4t
|
|
Machine width
|
705mm
|
705mm
|
|
Machine depth
|
700mm
|
700mm
|
|
Machine height
|
1380mm
|
1380mm
|
|
Weight
|
160kg
|
172mm
|
|
Electrical connection
1AC/50Hz/230V/N/PE
|
0.58kW
|
0.99kW
|
|
Supply water connection
|
3/4'' external thread
|
3/4'' external thread
|
|
Drain water connection
|
2x3/4'' hose clip
|
2x3/4'' hose clip
|
|
Silo capacity
|
50kg
|
50kg
|
* The indicated ice output depends on installation conditions.
Water temperature +16°C (+60.8°F), ambient temperature +20°C (+68.8°F).
Higher temperatures may lead to reduced ice output.
Accessories
|
Ozone disinfection
|
Creating best-possible hygiene conditions for the inlet water supply
|
|
Automatic self-cleaning
|
MAJA-SCS for time-saving and optimum hygiene safety by automating the cleaning process
(included by default in MAJA SAH 170 L, optional equipment for MAJA SAH 85 L)
|
|

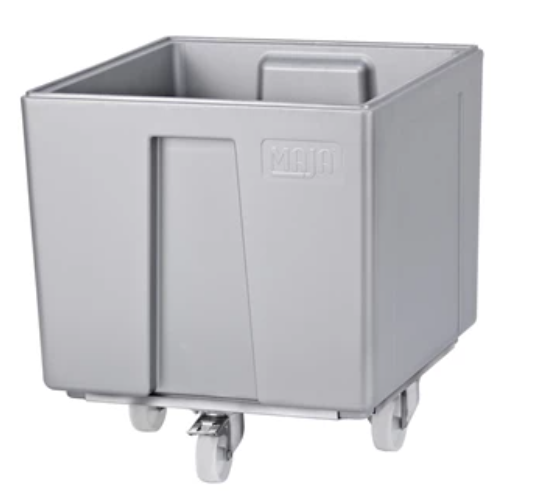

Additional ice carts EV50
|
For more flexibility by alternating use and increased storage capacity
|
|
Control Panel ON/OFF
for remote operation
|
With wall holdfast and cable 5m
|
|
Control Panel Timer
with timer function
|
Freely programmable ice production and cleaning cycles
|
|
External water pre-heater
|
For low-water/ambient temperatures between +2°C and +5°C
|
