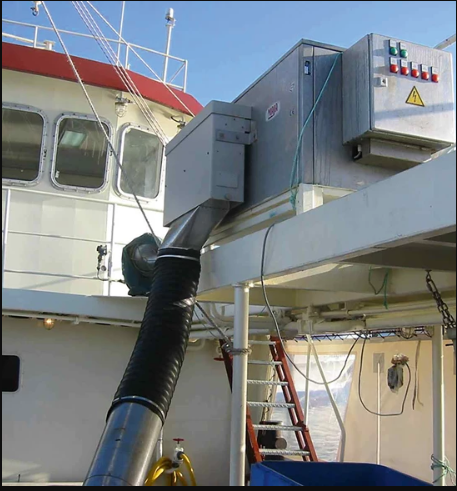

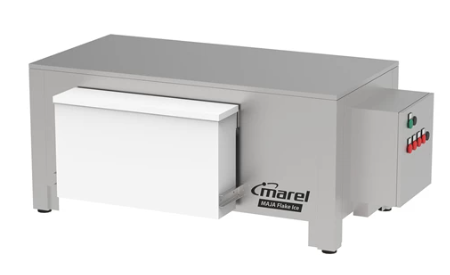

The quality of the catch depends very much on the availability of ice for assuring continuous refrigeration. The refrigeration begins directly after the catch, meaning on board the fishing vessel. But in the open sea conditions are rough and can impact the trouble-free operation of a 'normal' flake ice machine. The off-shore line MAJA RVE-2S is made for seagoing use and trouble-free ice production on board fishing vessels.
Ice capacities 750kg-2,900kg every 24 hours.
Made for operation on fishing vessels
- Suitable for freshwater or seawater freezing
- For connection to an existing R404A refrigeration system
- With maintenance-friendly electro-mechanical controls
- Compact machine size
Special seagoing machine execution
- Built-in water tank (non-removable), with slap-over protection for trouble-free ice production even in rough seas
- Increased protection from corrosion for operation in salt-laden ambiance, for example the non-corroding evaporator housing in stainless steel 1.4571 (AISI 316Ti; formerly V4A)
Specifications
For
freshwater |
Ice output
24h |
Ice output
1h |
Electrical
connection |
Dimensions
W x D x H |
Machine
weight |
| RVE 702 S |
1100kg |
45kg |
0.47kW |
1210x884x640mm |
180 kg |
| RVE 1702 S |
2000kg |
83kg |
0.47kW |
1410x884x640mm |
220 kg |
| RVE 3102 S |
2900kg |
120kg |
0.47kW |
1580x884x640mm |
250 kg |
For
seawater |
Ice output
24h |
Ice output
1h |
Electrical
connection |
Dimensions
W x D x H |
Machine
weight |
| RVE 702 S |
750kg |
31kg |
0.35kW |
1210x884x640mm |
180 kg |
| RVE 1702 S |
1700kg |
70kg |
0.35kW |
1410x884x640mm |
220 kg |
| RVE 3102 S |
2200kg |
91kg |
0.47kW |
1580x884x640mm |
250 kg |
The indicated ice output is an approximate value depending on installation conditions.
Water temperature +16°C, ambient temperature +20°C
R449A: fluorinated greenhouse gas GWP 1397 is supplied without refrigerant charge.
Versions
All RVE-2S models are available for freshwater and also for seawater freezing.
Accessories
| Water tank heating: |
For protection from freezing damages caused by ambient temperatures below +6°C or water temperatures below +8°C |
ON/OFF remote control
unit: |
For remote machine operation with 5 meter cable |
