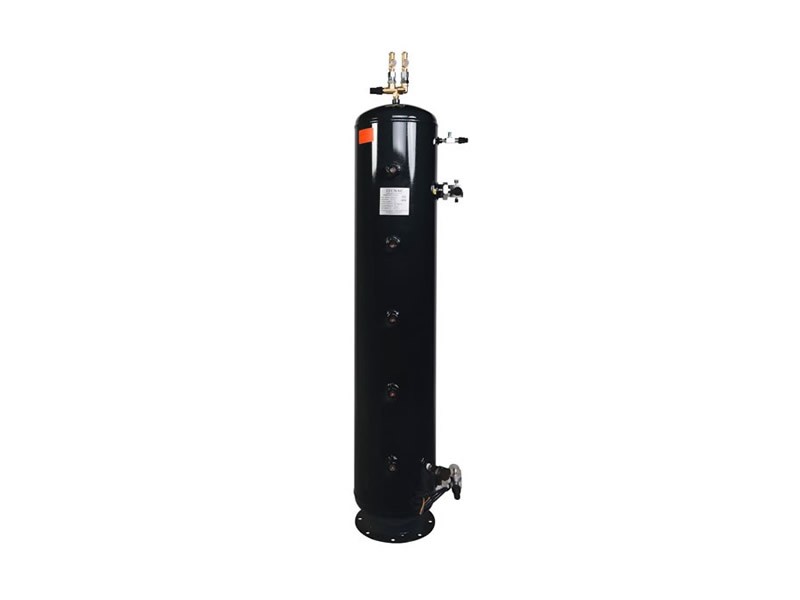

Vertical Receiver

VERTICAL RECEIVER / RECIPIENTE VERTICAL

32bar

-20/100ºC

Kg

Model Modelo

Code Código

Vol (L)

Valves - Válvulas

Safety valve

Válvula Se- guridad

Sight glasses Visores (1")

DIMENSIONS - DIMENSIONES (mm)

IN inch Entrada

OUT inch Salida

Ø

L

T

A/A1

B

CAT. II

15 BAV-18 12.004 18 7/8” ODS 1” X 5/8” ODS 3/8” - 273 435 300 - / 267 -

26 RV-30 08001 30 1 3/4” x 1 1/8" 1 1/4” x 7/8" 3/8" 3 273 642 Ø220 123/180 123

CAT. II

CAT. III

33 RV-45 08002 45 1 3/4” x 1 1/8" 1 3/4” x 1 1/8" 3/8" 3 273 925 Ø220 116/180 216

50 RV-60 08003 60 1 3/4” x 1 3/8" 1 3/4” x 1 1/8" 3/8" 3 323,9 865 Ø280 130/180 215

66 RV-90 08004 90 2 1/4” x 1 5/8" 1 3/4” x 1 3/8" 1/2" 3 323,9 1200 Ø280 125/180 250

CAT. IV

80 RV-120 08005 120 2 1/4” x 2 1/8" 2 1/4” x 1 5/8" 2 x 1/2" 5 323,9 1680 Ø280 150/180 350

100 RV-150 08012 150 2 1/4” x 2 1/8" 2 1/4” x 1 5/8" 2 x 1/2" 5 406.4 1356 Ø355 150/190 350

121 RV-180 08006 180 2 1/4” x 2 1/8" 2 1/4” x 1 5/8" 2 x 1/2" 5 406,4 1606 Ø355 165/184 350

178 RV-250 08013 225 2 1/2" 2 1/4” x 2 1/8" 2 x 1/2" 5 406 1766 Ø355 165/184 280

185 RV250 (610) 08028 250 2 1/2” 2 1/4” x 2 1/8” 2 x 1/2” 3 610 1032 Ø530 205/263 305

195 RV-350 08008 350 3" 2 1/2" 2 x 1/2" 5 610 1442 Ø530 205/263 344

263 RV-500 08009 500 3" 2 1/2" 2 x 1/2" 5 610 1780 Ø530 237/253 389

397 RV-750 08010 750 4" 3" 2 x 1/2" 5 610 2738 Ø530 253/253 405

540 RV-750 (813) 08029 750 4” 3” 2 X 1/2” 3 813 1670 q640 250/340 388

570 RV-1000 08011 1000 5” 4” 2 x 1/2" 5 813 2040 q640 235/330 375

710 RV-1250 08007 1250 5” 4” 2 x 1/2" 5 813 2540 q640 310/330 640

830 RV-1500 08014 1500 5” 4” 2 x 1/2" 5 813 3040 q640 310/350 640

960 RV-2000 08015 2000 5” 4” 2 x 1/2" 5 914 3182 q640 273/382 503

1350 RV-2500 08018 2500 5” 4” 1” 5 914 4169 q640 310/382 640
