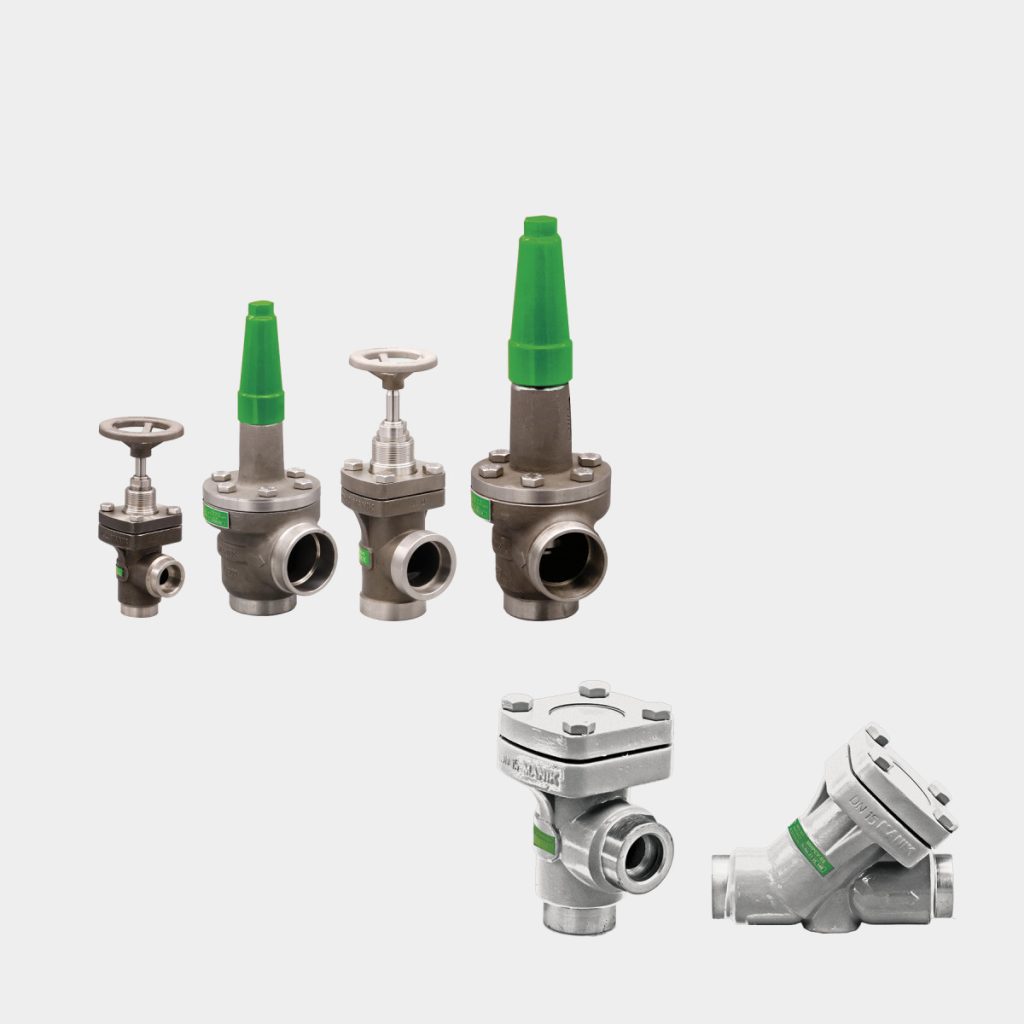

HIGH PRESSURE STOP CHECK VALVES TYPE MHPSCV-SS AND MHPCV-SS

Maximum working pressure: 150 Bar g (1160 psi g)
Fluid temperature range: -60°C to + 150°C (–76°F to 302°F)
Application: Ammonia, Fluorocarbons, Carbon Dioxide
Material: Body: CF8 Cast Stainless Steel Body
Internals: SS304
Seat: PTFE
Connections: DN-15-40 – Socket/Butt Weld
DN 50-125 – Butt Weld.
Reliable Back Seating.

Liên hệ

Thông tin sản phẩm

INTRODUCTION

For installations in seaside areas and outdoor applications where the air is highly humid and corrosive, Stainless Steel Valves are recommended which provide elevated surface protection against corrosion. These valves are also recommended in applications where regular surface treatment is carried out to prevent fungal and bacterial growth.

The Manik MHPSCV-SS Valves have been specially design for such applications.

MHPSCV-SS is a combination stop valve and normally-spring-closed check valve. Whereas MHPCV-SS is a simple angle-type check valve. Both of these are available in an angle way only. Valves open wide for full flow in the arrow's direction on the valve body and promptly reset when reverse flow occurs. Optimum opening characteristics are attained due to Precisely Cut Ports. Primary characteristics of these valves include efficient functioning at low differential pressure,easy inspection and maintenance. These valves have stainless steel stems with back seating for seal replacement under working conditions. The internal design minimizes pulsations.

	Size in NB		Size in inch		Item Description		Price List
MHPSCV Stop Cum Check Valve - Angle way
15		1/2"		MHPSCV SS 15 D ANG STOP/CHECK VALVE		154
20		3/4"		MHPSCV SS 20 D ANG STOP/CHECK VALVE		164
25		1"		MHPSCV SS 25 D ANG STOP/CHECK VALVE		226
32		1 1/4"		MHPSCV SS 32 D ANG STOP/CHECK VALVE		260
40		1 1/2"		MHPSCV SS 40 D ANG STOP/CHECK VALVE		270
50		2"		MHPSCV SS 50 D ANG STOP/CHECK VALVE		322
65		2 1/2"		MHPSCV SS 65 D ANG STOP/CHECK VALVE		538
80		3"		MHPSCV SS 80 D ANG STOP/CHECK VALVE		615
100		4"		MHPSCV SS 100 D ANG STOP/CHECK VALVE		814
125		5"		MHPSCV SS 125 D ANG STOP/CHECK VALVE		1366
MANIK CHECK VALVE ANGLE TYPE MHPCV
15		1/2"		MHPCV SS-15 ANGLE CHECK VALVE		120
20		3/4"		MHPCV SS-20 ANGLE CHECK VALVE		127
25		1"		MHPCV SS-25 ANGLE CHECK VALVE		175
32		1 1/4"		MHPCV SS-32 ANGLE CHECK VALVE		203
40		1 1/2"		MHPCV SS-40 ANGLE CHECK VALVE		212
50		2"		MHPCV SS-50 ANGLE CHECK VALVE		251
65		2 1/2"		MHPCV SS-65 ANGLE CHECK VALVE		417
80		3"		MHPCV SS-80 ANGLE CHECK VALVE		474
100		4"		MHPCV SS-100 ANGLE CHECK VALVE		623
125		5"		MHPCV SS-125 ANGLE CHECK VALVE		1075
