INTRODUCTION
For installations in seaside areas and outdoor applications where the air is highly humid and corrosive, Stainless Steel Valves are recommended which provide elevated surface protection against corrosion. These valves are also recommended in applications where regular surface treatment is carried out to prevent fungal and bacterial growth.
The Manik MHPRG-SS Valves have been specially design for such applications.

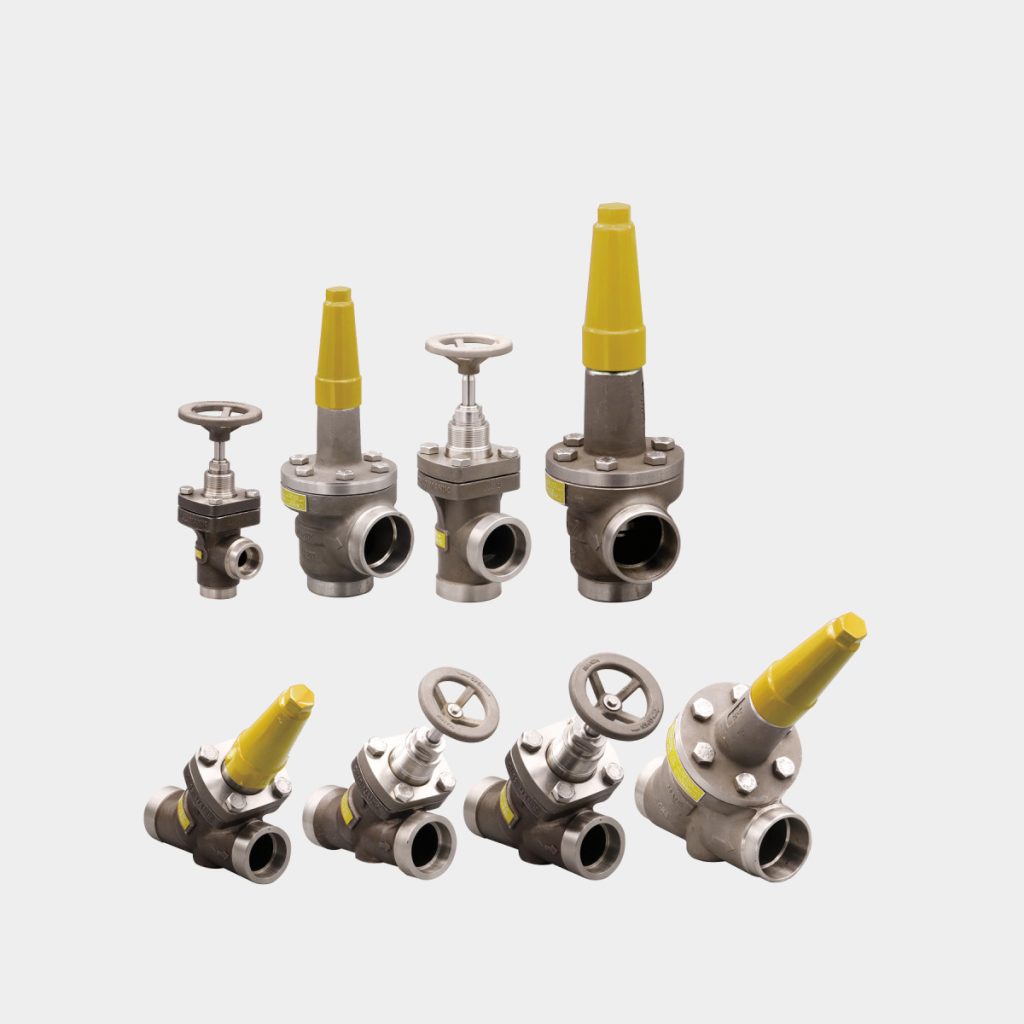

There are two types of MHPRG-SS hand regulating valve MHPRG-A-SS and MHPRG-B-SS are ideal for metering or flashing expansion of liquid refrigerants. These valves are available in angle and globe types. These valves have stainless steel stems with back seating for seal replacementunder working conditions. MHPRGSS valve available in two variants- MHPRG-A-SS for liquid expansion lines and MHPRG-B-SS for liquid line flow regulation purpose. These valves are specifically designed as per international guidelines for refrigerating installations, specific flow conditions, and line characteristics. The MHPRG-SS can also be used as a stop valve when the regulating function is not required. Interchangeable handwheel or seal cap available. Yellow seal caps or handwheels distinguish them from shut-off valves.
|
Size in NB
|
Size in inch
|
Item Description
|
Price List
|
|
Hand regulating Valve
|
|
|
|
10
|
3/8"
|
MHPRG-SS-10 A/B Angle / Straight Cap
|
86
|
|
10
|
3/8"
|
MHPRG-SS-10 A/B Angle / Straight h/W
|
86
|
|
15
|
1/2"
|
MHPRG-SS-15 A/B Angle / STR Cap
|
102
|
|
15
|
1/2"
|
MHPRG-SS-15 A/B Anlge / STR Hand Wheel
|
102
|
|
20
|
3/4"
|
MHPRG-SS-20 A/B Angle / STR Cap
|
115
|
|
20
|
3/4"
|
MHPRG-SS-20 A/B Angle / STR Hand Wheel
|
115
|
|
25
|
1"
|
MHPRG-SS-25 A/B Angle / STR Cap
|
173
|
|
25
|
1"
|
MHPRG-SS-25 A/B Angle / STR Hand Wheel
|
173
|
|
32
|
1 1/4"
|
MHPRG-SS-32 A/B Angle / STR Cap
|
186
|
|
32
|
1 1/4"
|
MHPRG-SS-32 A/B Angle / STR Hand Wheel
|
186
|
|
40
|
1 1/2"
|
MHPRG-SS-40 A/B Angle / STR Cap
|
205
|
|
40
|
1 1/2"
|
MHPRG-SS-40 A/B Angle / STR Hand Wheel
|
205
|
|
50
|
2"
|
MHPRG-SS-50 A/B Angle / STR Hand Wheel
|
239
|
|
50
|
2"
|
MHPRG-SS-50 A/B Angle / STR Cap
|
239
|
|
65
|
2 1/2"
|
MHPRG-SS-65 A/B Angle / STR CAP
|
347
|
|
65
|
2 1/2"
|
MHPRG-SS-65 A/B Angle / STR Hand wheel
|
347
|
|
80
|
3"
|
MHPRG-SS-80 A/B Angle / STR CAP
|
463
|
|
80
|
3"
|
MHPRG-SS-80 A/B Angle / STR Hand wheel
|
463
|
|
100
|
4"
|
MHPRG-SS-100 A/B Angle / STR CAP
|
607
|
|
100
|
4"
|
MHPRG-SS-100 A/B Angle / STR Hand wheel
|
607
|
* PRICE EXWORK
