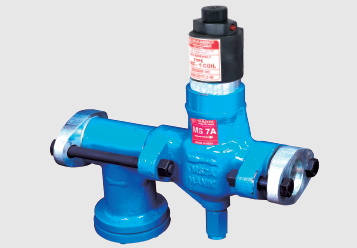

SOLENOID VALVES TYPE MS7A & MS8A

FEATURES :

All Valves are spring closing.
All Valves have Teflon seat
One Solenoid Coil fits all Valves
Close-coupled strainers are available
Non Asbestos gasket
300 PSI (21 bar) MOPD
Suitable for Ammonia, CO2, R-22, R13a, R404a and other refrigerants
MS8½” (15 mm) Ductile Iron Body
MS7¾” – 1¼” (20 – 32 mm) Ductile Iron Body

Thông tin sản phẩm

INTRODUCTION

These high quality valves are compact, strong and reliable.
Stainless steel pistons with Teflon seals are used to overcome the problem of valve sticking due to dirt or lack of oil. Pilot seats are polished stainless steel on Teflon discs and main valve seats align for tight closing. These valves can be used in liquid. suction, hot gas, discharge, pump lines etc., where a strong opening, tight closing valve is required.
