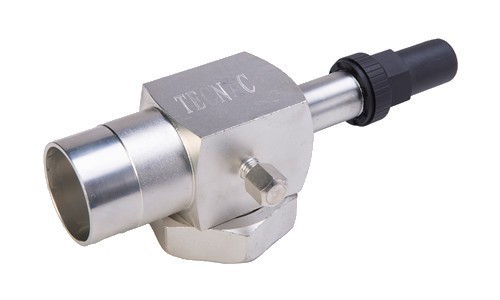

ROTALOCK VALVES

Weld type steel Valves with coating anticorrosion.
Sealed plastic plug of great capacity to avoid losses of refrigerant.
All the valves include two gauges of ¼ " SAE (*) with brass plugs.
Compatible only with fluids of the group II.
Other measurements on demand. Please consult

Liên hệ

Thông tin sản phẩm

45 bar -40/140ºC
CODE CÓDIGO	MODEL / MODELO	D₁ (mm)	D₂ (mm)	L₁ (mm)	L₂ (mm)	L₃ (mm)	Kv (m³/h)
A-005218	Rotalock Valve 1 1/4" x 1 1/4" -NH₃	19	19	129	42	37	12
A-005219	Rotalock Valve 1 3/4" x 1 3/4" -NH₃	26	29	168	49.5	44.5	27
A-005220	Rotalock Valve 2 1/4" x 2 1/4" -NH₃	37	37	182	60	53.5	48

45 bar -40/140ºC
CODE CÓDIGO	MODEL / MODELO	Body (mm)	A (mm)	B (inch)	D (mm)	Kv (m³/h)
A-005038	Rotalock Valve 1" x 3/8" SAE	□20	12	1"	-	3,8
A-005222	Rotalock Valve 1" x 3/8" ODS	□20	12	1"	9,8	3,8
A-005003-01	Rotalock Valve 1" x 1/2" ODS	□20	12	1"	12,95	3,8
A-005003-02	Rotalock Valve 1" x 5/8" ODS	□20	12	1"	16,2	3,8
A-005139	Rotalock Valve 1" x 7/8" ODS	□20	12	1"	22,5	3,8
A-005223	Rotalock Valve 1 1/4" x 5/8" SAE	□20	18	1 1/4"	-	3,8
A-005024	Rotalock Valve 1 1/4" x 5/8" ODS	□20	18	1 1/4"	16,2	3,8
A-005221	Rotalock Valve 1 1/4" x 1/2" ODS	□20	12	1 1/4"	12,95	3,8
A-005001-02	Rotalock Valve 1 1/4" x 7/8" ODS	□30	18	1 1/4"	22,5	8,5
A-005025	Rotalock Valve 1 1/4" x 1 1/8" ODS	□30	19	1 1/4"	28,85	8,5
A-005037	Rotalock Valve 1 3/4" x 7/8" ODS	□30	19	1 3/4"	22,5	8,5
A-005002-01	Rotalock Valve 1 3/4" x 1 1/8" ODS	□30	19	1 3/4"	28,85	8,5
A-005002-01F	Rotalock Valve 1 3/4" x 1 1/8" ODS	□36	27	1 3/4"	28,85	17
A-005002-02	Rotalock Valve 1 3/4" x 1 3/8" ODS	□36	27	1 3/4"	35,3	17
A-005036	Rotalock Valve 1 3/4" x 1 5/8" ODS	□36	27	1 3/4"	41,2	17
A-005004-1	Rotalock Valve 2 1/4" x 2 1/8" ODS	□50	38	2 1/4"	54,4	35
A-005004-2	Rotalock Valve 2 1/4" x 1 5/8" ODS	□50	38	2 1/4"	41,6	35
