INTRODUCTION:

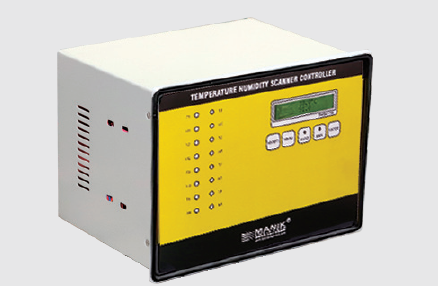

The PTHSC-08/16 provides dual function of monitoring and controlling pressure/temperature/humidity for up to 8/16 inputs. Fast response time and accurate measurement makes this device perfect for Precise Control. It supports RS-485 Modbus communication for seamless interfacing and monitoring to DCS/SCADA systems.
Features:
| Power supply: |
230VAC / 110VAC / 24VDC* |
| Display: |
16X2 LCD |
| Auto/Manual Mode: |
Auto mode as per scan time (0-99Sec)
Manual Mode Advance by Keypad. |
| No. of Inputs |
8 / 16 Nos. |
| Inputs & Ranges |
Temperature (PT100 / PT1000): -50 to +150˚C
Humidity (4-20mA): – 0 to 100%RH
Pressure (4-20mA): – -1 to 5Bar, -1 to 10Bar, -1 to 25Bar |
| No. of Outputs |
8 / 16 Relay outputs (1 output for each input) |
| Output type: |
SPDT Relay. Rated current – 5A @ 230VAC. |
| Resolution: |
Pressure – 0.1 Bar
Temperature – 0.1°C
Humidity – 1 %RH |
| Enclosure: |
IP54 |
| Enclosure Mounting: |
Panel mounting |
| Parameters Displayed: |
Pressure (Bar)
Temperature (˚C)
Humidity (%RH)
Set Points for each channel |
| LED Indications: |
Each Relay Output |
| Communication: |
RS485 Modbus |
* Voltage to be specified while ordering.
