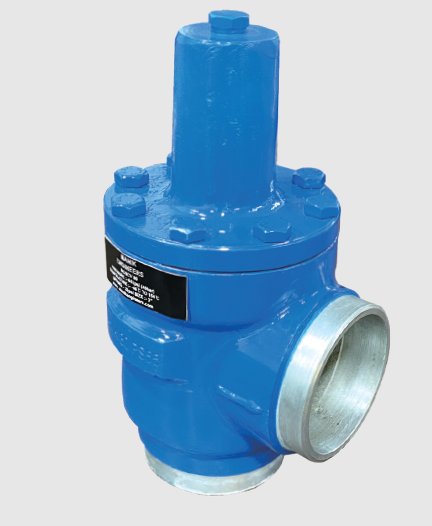

OIL SEPARATOR CONTROL VALVE – MOSCV

TECHNICAL DATA:

Housing and Bonnet Material: LCC A352, Low temperature weldable cast steel.
Max Working Pressure = 45 Bar
Temperature range: -46 to 150oC
Suitable for R717 and other non-flammable refrigerants.
Precise operation with excellent repeatability.
Teflon seating for perfect sealing and prevention of backward leakage.
Aids quick-build-up of Oil pressure during Compressor Start-Up.

Thông tin sản phẩm

INTRODUCTION:

The Manik Oil Separator Pressure Control Valve is used for the control of discharge pressure of the compressor. The valve aims to provide quick pressure build-up of oil pressure. Additionally, the MOSCV acts as a non-return valve in the discharge line.

The MOSCV operates on differential pressure. When the differential pressure across the oil separator and the suction side goes above 2 Bar (28 psi), the valve is fully opened. A differential pressure of 0.6 bar (8psi) is required for Low-pressure applications. These valves are available in butt weld angle type only.
