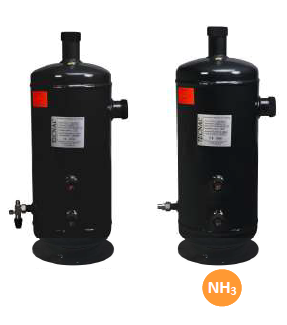

Combination oil separator and oil receiver.
The removed oil is stored it in the reservoir part of the vessel where residual refrigerant will evaporate.
While the system is running, the oil reservoir should be filled with the compressor refrigeration oil up to the upper sight glass. If the oil level in the reservoir drops below the lower sight glass level, oil must be refilled.
Reduction of the time of assembly / Reduction of quantity of components / Without inside float.
|
32bar -20/100ºC
|
Kg
|
V (L)
|

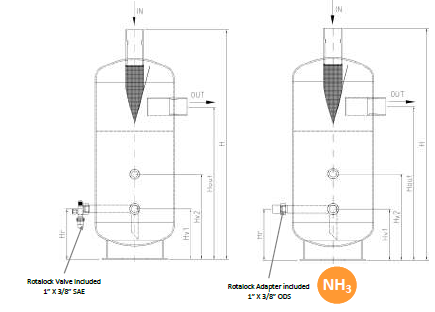

Dimensions
Dimensiones mm)
|
Maximum Capacity Capacidad Máxima Kw TCond
|
|
Va
|
Vt
|
Vv1
|
Vv2
|
Ø
|
Hout
|
Hr
|
Hv1
|
Hv2
|
H
|
R134a
|
R404A
|
|
-30ºC
|
+5ºC
|
-40ºC
|
+5ºC
|
|
CAT. II
|
SAV-3,5
|
7/8"
|
53.001
|
8.5
|
3.5
|
9
|
0,9
|
2,1
|
159
|
426
|
72
|
75
|
132
|
546
|
28
|
30
|
36
|
45
|
|
CAT. II
|
SAV-3,5
|
1 1/8"
|
53.002
|
8.5
|
3.5
|
9
|
0,9
|
2,1
|
159
|
426
|
72
|
75
|
132
|
546
|
35
|
41
|
52
|
60
|
|
CAT. II
|
SAV-3,5
|
1 3/8"
|
53.003
|
8.5
|
3.5
|
9
|
0,9
|
2,1
|
159
|
426
|
72
|
75
|
132
|
546
|
40
|
50
|
60
|
70
|
|
CAT. II
|
SAV-9,5
|
1 3/8"
|
53.004
|
17
|
9.5
|
17
|
2,9
|
5,6
|
193
|
584
|
121
|
155
|
255
|
732
|
60
|
80
|
80
|
120
|
|
CAT. II
|
SAV-9,5
|
1 5/8"
|
53.005
|
17
|
9.5
|
17
|
2,9
|
5,6
|
193
|
584
|
121
|
155
|
255
|
732
|
85
|
100
|
110
|
160
|
|
CAT. II
|
SAV-9,5
|
2 1/8"
|
53.006
|
17
|
9.5
|
17
|
2,9
|
5,6
|
193
|
584
|
121
|
155
|
255
|
732
|
90
|
100
|
145
|
165
|
|
CAT. III
|
SAV-20
|
2 1/8"
|
53.007
|
25
|
20
|
31
|
5,5
|
12
|
273
|
512
|
170
|
170
|
288
|
773
|
120
|
152
|
170
|
252
|
|
CAT. III
|
SAV-20
|
2 5/8"
|
53.008
|
25
|
20
|
31
|
5,5
|
12
|
273
|
512
|
170
|
170
|
288
|
773
|
158
|
180
|
268
|
300
|
|
CAT. III
|
SAV-20
|
3 1/8"
|
53.009
|
25
|
20
|
31
|
5,5
|
12
|
273
|
512
|
170
|
170
|
288
|
773
|
158
|
180
|
268
|
300
|
