GAUGE VALVE (MGV)

Thông tin sản phẩm

The MGV valves are specially designed to meet all modern refrigeration application necessities as service valves and favorable flow characteristics.

  • Applicable to R717(Ammonia), R744(CO2), HCFC and HFC.
  • The valves and seal caps are prepared for sealing, to avoid
    operation by unauthorised person.
  • The MGV valves have front & back metal to metal seating.
  • Valve body material is low temperature steel as per PED norms.
  • Maximum working pressure: 754 psi g (52 bar g).
  • Operating temperature range: -60 to +150°C (-76 to 302°F).

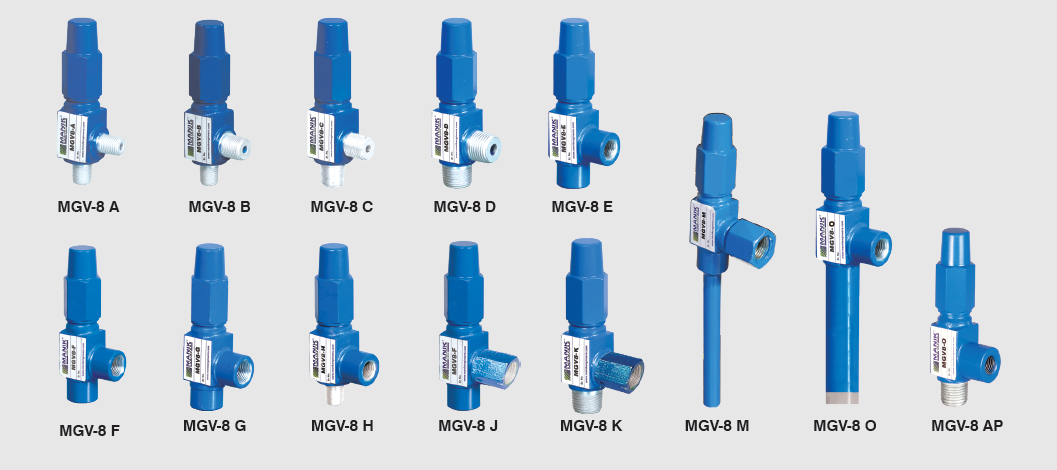

  • Available with the following connection

Model

INLET PORT

OUTLET PORT

MGV-8 A

1/4″ NPTM

1/4' NPTM ANSI

MGV-8 B

1/4″ NPTM

3/8' NPTM ANSI

MGV-8 C

3/8″ NPTM

3/8' NPTM ANSI

MGV-8 D

1/2″ NPTM

1/2' NPTM ANSI

MGV-8 E

1/4″ NPTF

1/4' NPTF ANSI

MGV-8 F

1/4″NPTF

3/8'NPTF ANSI

MGV-8 G

3/8″ NPTF

3/8'NPTF ANSI

MGV-8 H

1/4″ NPTM

1/4' NPTF

MGV-8 J

1/4″NPTF

1/2' NPTF

MGV-8 K

1/2″ MPT

1/2' FPT

MGV-8 M

1/4″ WELD

1/2' FPT
