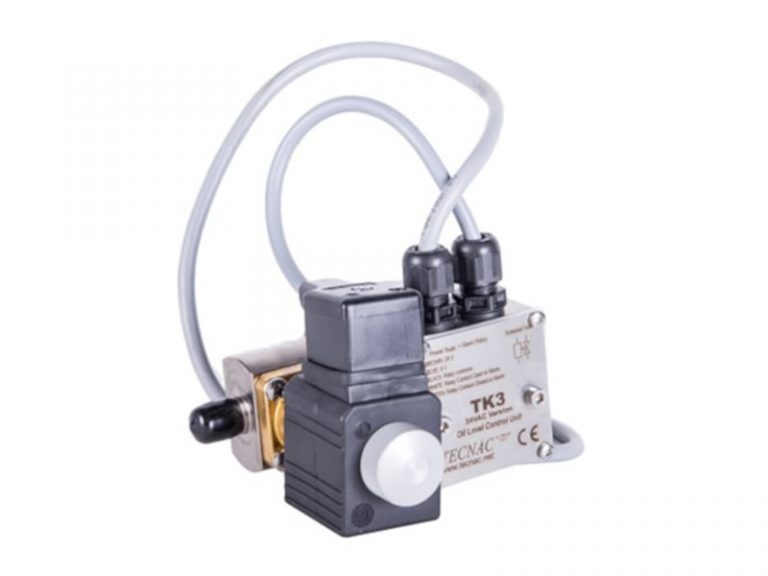

Electronical Oil Level Regulator - TK3

Designed to control the oil level in the compressor crackcase in order to avoid the compressor to run without oil and so improve its lifetime. TK3 monitors the oil level with the embedded electro-optic sensor and comprises a solenoid valve for oil filling and a relay output contact to give an alarm.

Extremely compact dimensions.
Left/Right mounting possibility with the same TK3.
Reduction of the number of junctions in the circuit with less possibility of having leakages.
Usage of less components.
Simpliﬁed Installation (cost savings in terms of installation time).

Liên hệ

Thông tin sản phẩm

MAIN FEATURES

• High reliability ensured by absence of mechanical moving parts.
• Sight glass and electronic LEDs can be checked on the same side where is
more comfortable to do inspections.
• Well consolidated steel with fused glass technology with absence of seals
ensures no leakage and good chemical compatibility.
• Direct sight glass replacement (3/4/6 holes flange connection)
• Easy maintenance of the coil of the valve and of the Electro-Optic sensor
that can be easily replaced without emptying or depressurizing the plant.
• 230 VAC /2A alarm relay output suitable for direct connection in the security
chain of the system
• Adapters suitable for various types of compressors
• Unit conform to directives: 2004-108-CE *CEI EN 60204-1:2006

*FOR COMPRESSOR* PARA COMPRESOR	Code Código	Max. Working Pressure	MOPD
TK3– 46bar-230V	A-005241	46 bar	26 bar
TK3– 46bar-24V	A-005244	46 bar	26 bar
TK3– 80bar-230V	A-005242	80 bar	60 bar
TK3– 80bar-24V	A-005245	80 bar	60 bar
TK3– 120bar-230V	A-005243	120 bar	100 bar
TK3– 120bar-24V	A-005246	120 bar	100 bar
