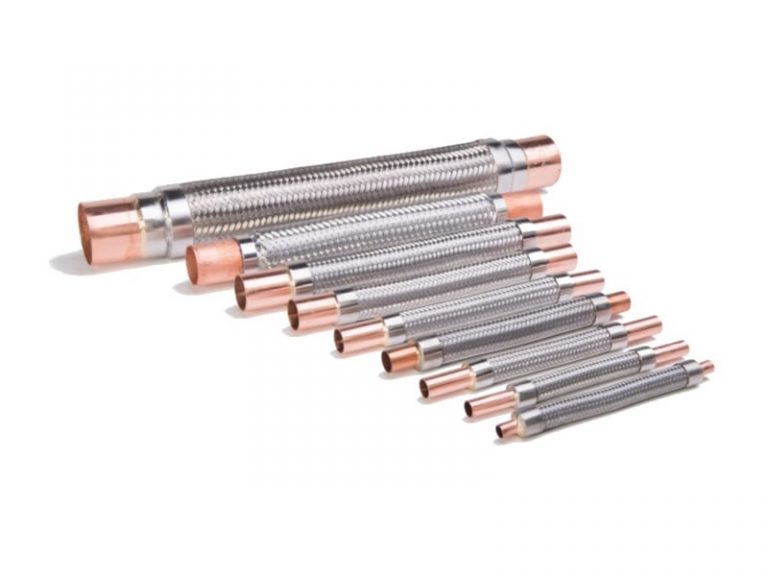

The antivibrators of stainless steel are used in circuits designed with rigid pipelines to obtain a notable decrease of the noises, to absorb and to eliminate the vibrations, and to compensate the expansions produced by the changes of temperature.
|
MODEL MODELO
|
CODE CÓDIGO
|
DN (INCH)
Diam. Nom.
|
DIMENSIONS - DIMENSIONES (mm)
|
PRESSURE( bar) / PRESIÓN
|
|
A(I.D)
Diam. Int
|
B(±4)
|
D(±8)
|
e
|
Working Pres.
Trabajo
|
Break Pres.
Rotura
|
|
VA-1/4
|
A-005087
|
1/4″
|
Ø6.4
|
13
|
200
|
1.2
|
44.8
|
224
|
|
VA-3/8
|
A-005076
|
3/8″
|
Ø9.60
|
19
|
217
|
1.2
|
35
|
224
|
|
VA-1/2
|
A-005077
|
1/2″
|
Ø12.8
|
22
|
229
|
1.2
|
35
|
224
|
|
VA-5/8
|
A-005078
|
5/8″
|
Ø16.0
|
24
|
250
|
1.2
|
35
|
224
|
|
VA-3/4
|
A-005079
|
3/4″
|
Ø19.2
|
32
|
268
|
1.2
|
35
|
224
|
|
VA-7/8
|
A-005080
|
7/8″
|
Ø22.2
|
35
|
305
|
1.2
|
35
|
224
|
|
VA-1 1/8
|
A-005081
|
1 1/8″
|
Ø28.6
|
45
|
332
|
1.5
|
35
|
224
|
|
VA-1 3/8
|
A-005082
|
1 3/8″
|
Ø34.9
|
52
|
395
|
1.5
|
38
|
189
|
|
VA-1 5/8
|
A-005083
|
1 5/8″
|
Ø41.3
|
57
|
429
|
1.5
|
35
|
175
|
|
VA-2 1/8
|
A-005084
|
2 1/8″
|
Ø54.0
|
69
|
524
|
1.5
|
27.5
|
137
|
|
VA-2 5/8
|
A-005085
|
2 5/8”
|
Ø67
|
78
|
617
|
2.0
|
24
|
120
|
|
VA-3 1/8
|
A-005086
|
3 1/8”
|
Ø80
|
87
|
684
|
2.5
|
22
|
110
|
