Toundra UK A3

The Toundra refrigeration cells are offered in 246 configurations and fit any environment.
The clever design allows, from 160 cm dimensions, to place U shape shelvings and optimises storage.
On the “depth side”, a panel with same width as doorframe one, allows permutation of door location on site (according to dimensions, take care of shelvings).
For cells with floor, the door is totally reversible (right/left), you select once installing.
External face of the door is in PET non scratching and corrosion resistant for long term use.
Reduced width panels are easy to manipulate, even in narrow premises, and quick to install. Less than 2 hours required for 2 persons to install a cell.

Liên hệ

Thông tin sản phẩm

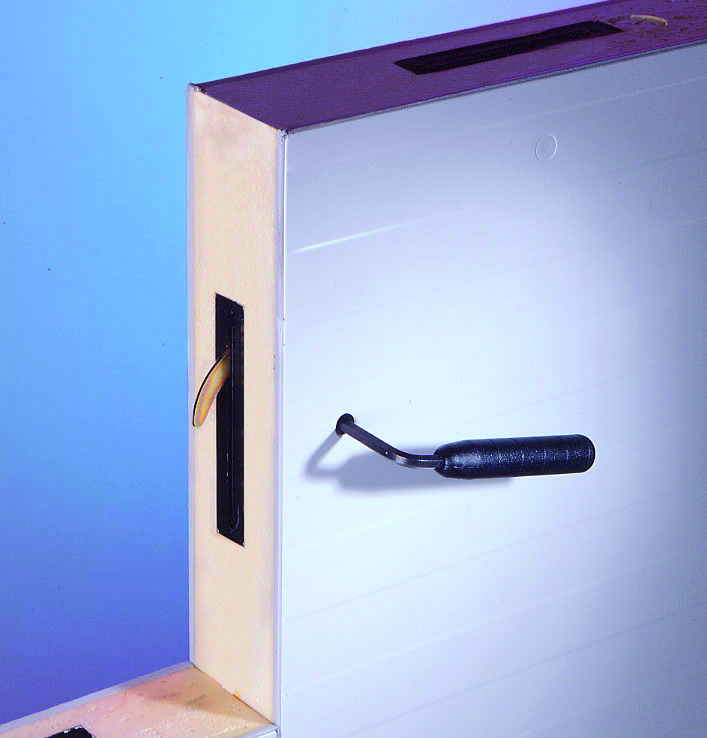

Partitions and ceiling consist in panels with camlocks
• Thickness 60 or 100 mm
• Iceberg white (close RAL 9010) powder-coated smooth steel
• High density polyurethane foam core, HCFC-free
• Standard polyurethane foam core, High density, HCFC-free
Option : B,s2-d0
• Thermal conductivity λ = 0,023 W/m.K
• Density 40 kg/m3
• Uc value : 0,37 W/m².K in thk. 60 mm
Uc value : 0,22 W/m².K in thk. 100 mm
Floors consist in panels with camlocks
• Thickness 60 or 100 mm
• Lower facing : lacquered steel
• Upper facing : plywood 9 mm + phenolic resin with anti-skid hexagonal shape.
(No rolling load).
• High density polyurethane foam core, HCFC-free
Junctions
• Inside : integrated rounded angles, radius 15 mm
• Outside : rounded angles and angle corners in the same colours as the handle, easily washable.

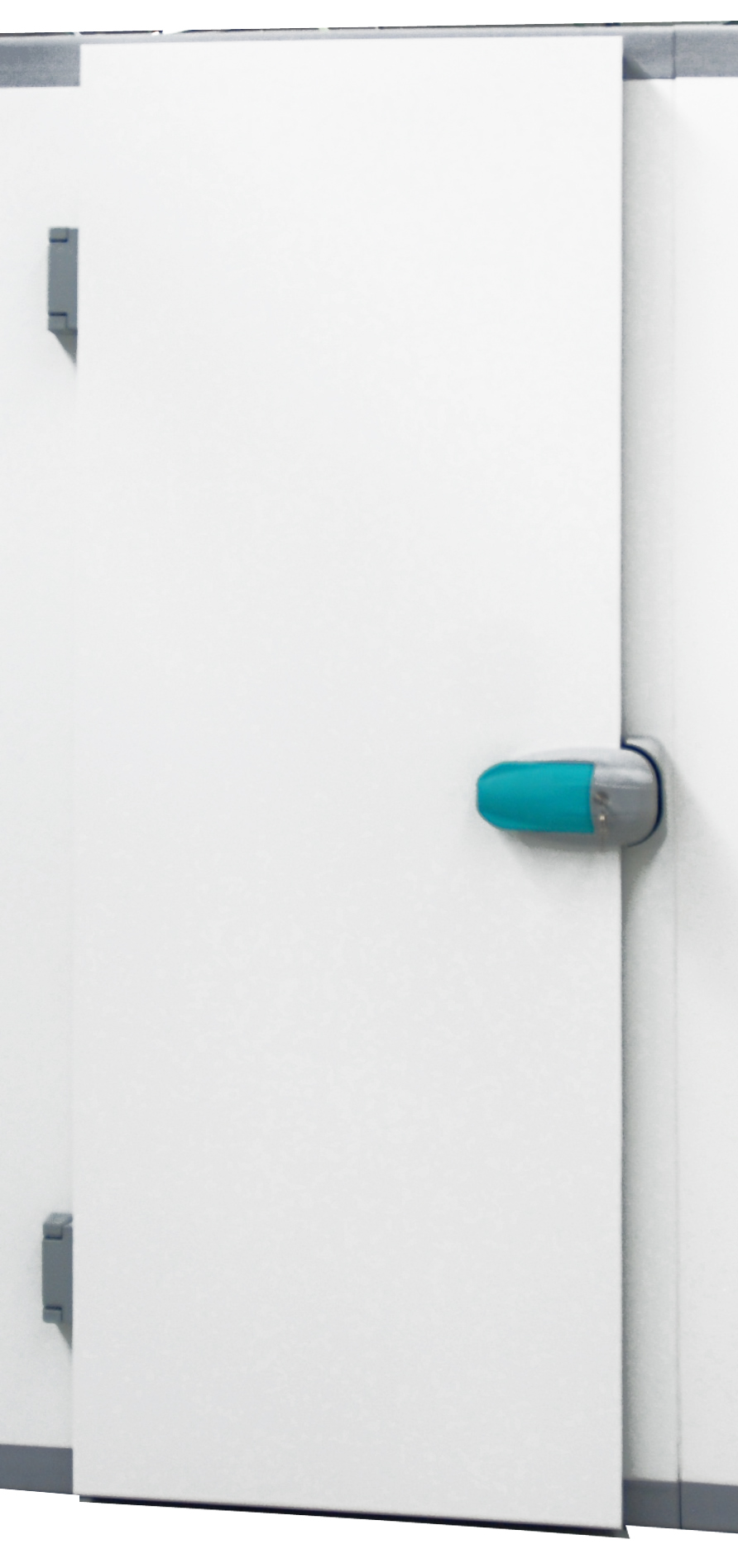

Isothermal hinged doors
• 185 x 70 cm reversible for cells of height 185,5 cm
203 x 70 cm reversible for cells of height 203 cm with
floor
Opening side to be chosen for cells of height 203 cm
without floor.
• Leaf of thickness 60 mm : 2 sides in white PET 55 μm
scratch and corrosion resistant

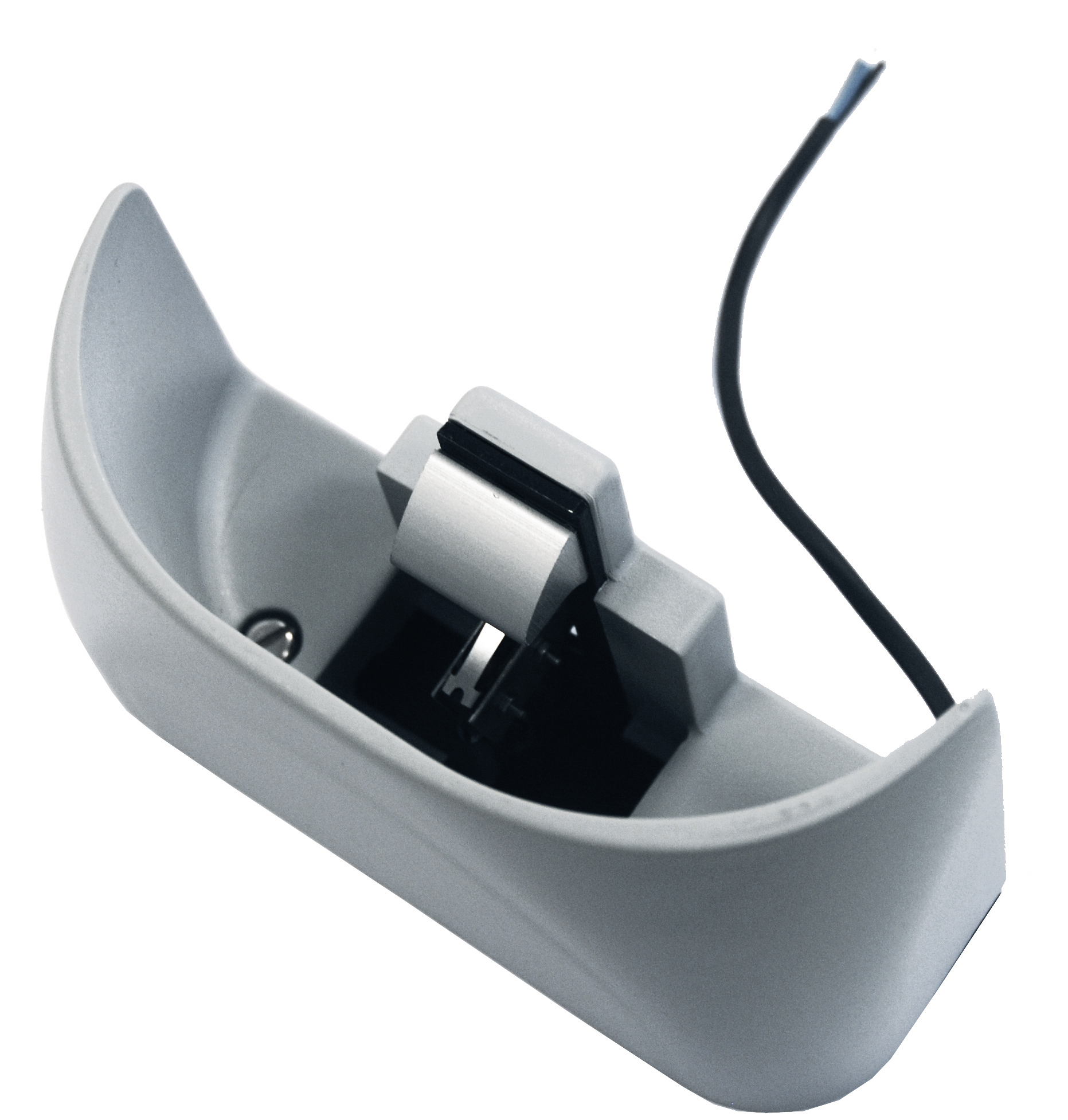

• Key lock with inside safety opening and external striking
plate to allow really neat free passage (no electrical
switch)
• Heating frame in negative temperature
• Off-centered free passage to optimise space for frames
120 cm wide / centered free passage for frames 100 cm
wide
• Doorframe with integrated tubes for passage of cables
