Taïga UK A3

Taïga cold rooms are designed to fulfill any environment, use or installation requirement. With or without floor, they are expandible in 3 directions, they can be partitioned or coupled (thickness 60 mm, same height and depth).

Integrated rounded connections allow easy and quick cleaning, in accordance to hygiene rules.

To match all needs, we propose a full range of doors : hinged or sliding insulated doors, service doors, swinging doors.

Thông tin sản phẩm

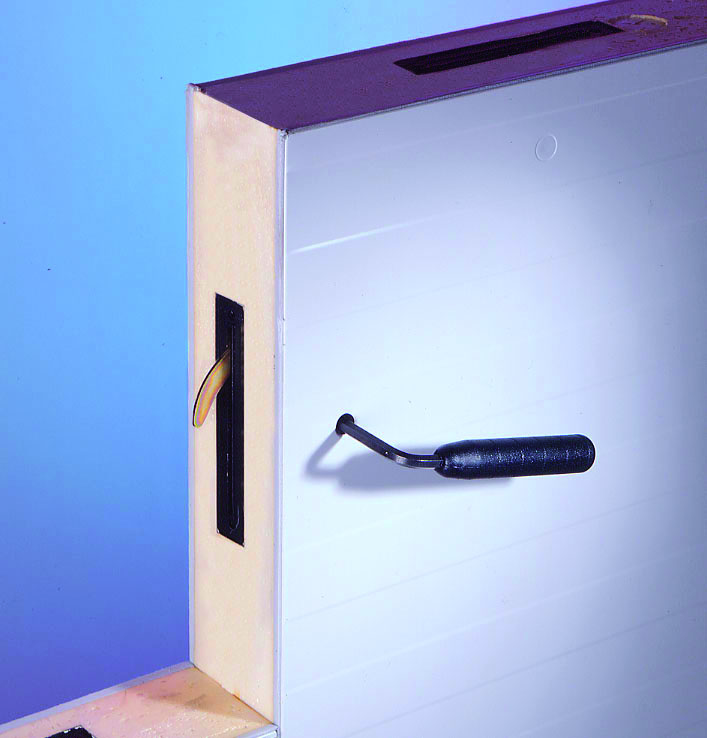

Partitions and ceiling consist in panels with camlocks of thickness 60 or 100 mm, with
iceberg white (close RAL 9010) powder-coated smooth steel facings and high density polyurethane
foam core, HCFC-free. Other coatings in option (stainless steel, PVC, PET, grey lacquered steel (close RAL 9006)).
• Standard polyurethane foam core, High density, HCFC-free Option : B,s2-d0
• Thermal conductivity λ = 0,023 W/m.K
• Density 40 kg/m3
• Uc value : 0,37 W/m².K in thk. 60 mm Uc value : 0,22 W/m².K in thk. 100 mm
Floors consist in panels with camlocks, thickness 60 or 100 mm with high density polyurethane foam core HCFC-free, lower facing in lacquered steel and upper facing :
• Standard : plywood 9 mm + phenolic resin with anti-skid hexagonal shape. (No rolling load).
• Option :
- PVC-coated floor : grey PVC-coated sheet 6/10th bonded on plywood 10 mm
- Non slipping aluminium reinforced plate (thk. 2 or 4 mm) on standard floor (for negative
temperature only)
- Stainless steel reinforced floor : embossed stainless steel 6/10th glued to CTBX plywood
reinforced with steel plate.

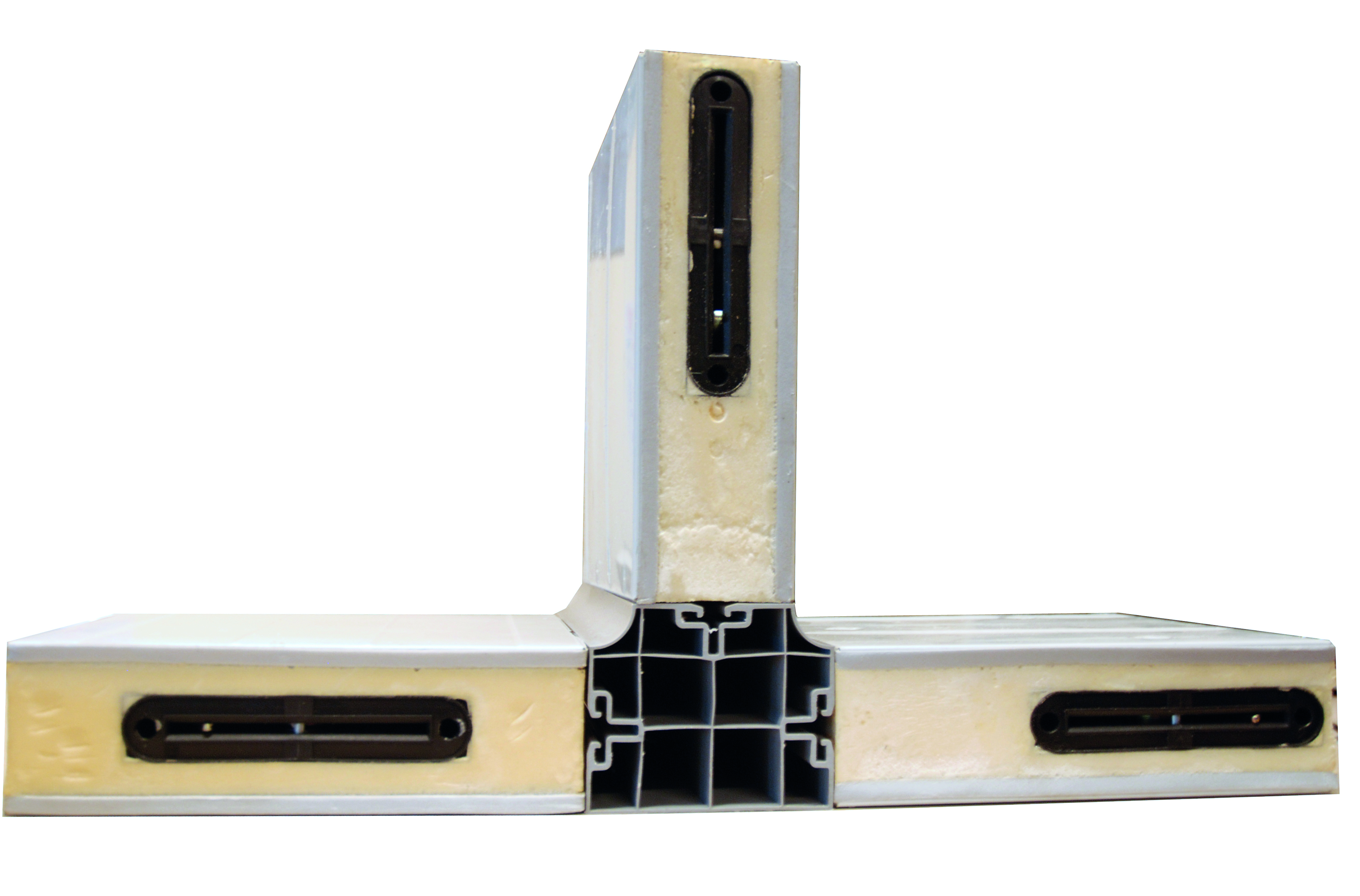

• Inside : integrated rounded angles, radius 15 mm
• Outside : rounded angles and angle corners in the same colours as the handle, easily washable.

Doors types

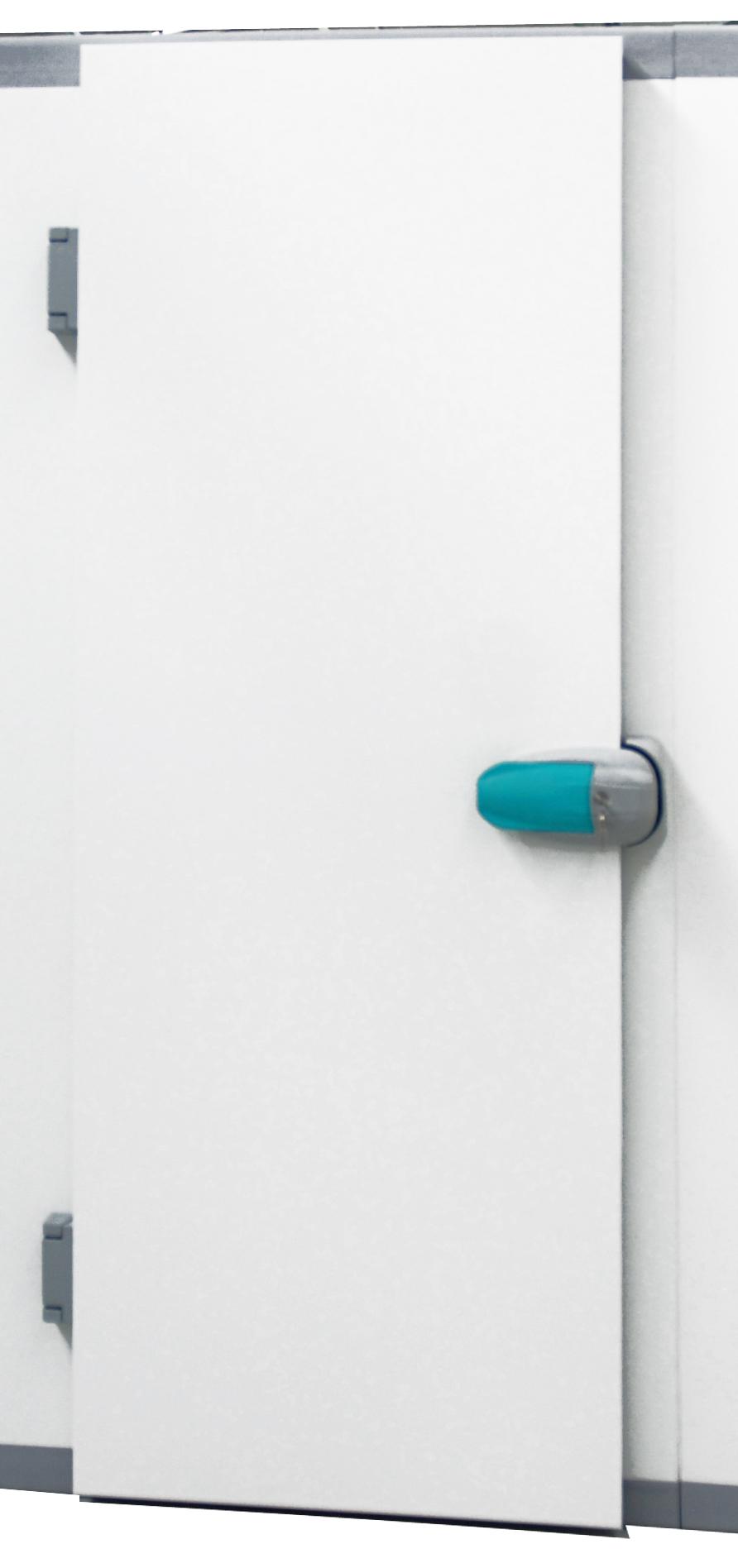

Insulated hinged door
• Leaf of thickness 60 mm in positive and 100 mm in negative
2 sides in white PET 55 μm scratch and corrosion resistant
• Key lock with inside safety opening and striking plate with electrical contact to light the room and stop cooling once opening the door.
• Doorframe with tubes for passage of cables
• Heater tape for negative temperature. Insulated sliding door
• Leaf of thickness 60 mm in positive and 120 mm in negative
• White smooth lacquered steel facings
• Aluminium rail
• Inside and outside level handles
• Internal PVC protection and external stainless steel rounded protection
• Doorframe with thermal bridge break
• Heater tape for negative temperature Service door
• Leaf of thickness 40 mm
• White smooth lacquered steel facings
• Inside and outside handles in white PVC Swinging door
• Leaf of thickness 40 mm
• White smooth lacquered steel facings
• Anti-finger pinch seal on edge of door
• Vision panel 60 x 30 cm
Option : for powder-coated steel leaf,
colour according to the chart.
