Optima UK A3

The thickness 80 mm of OPTIMA cells allows to use them either at positive or negative temperatures. The new design without horizontal angles procures high aesthetics and saves significant time for installation. The «calepinage» allows the installation of U
shape shelvings from the width 160 cm, in order to optimise the filling of the internal cell volume.

On the depth side of the cell a panel with the same width of the doorframe allows to permute the location of the door on any side (according to dimensions, take care of shelving’s dimensions). The door for 2 m high cells is perfectly reversible (left/right), once can choose the opening direction during installation. For 2,3 m high cell, the door is delivered right hinged but can be easily modified on site. The external door cladding is a PET complex, corrosion and chocks resistant, for long duration of the cell. Installation of a cell requires less than one hour for two persons.

Liên hệ

Thông tin sản phẩm

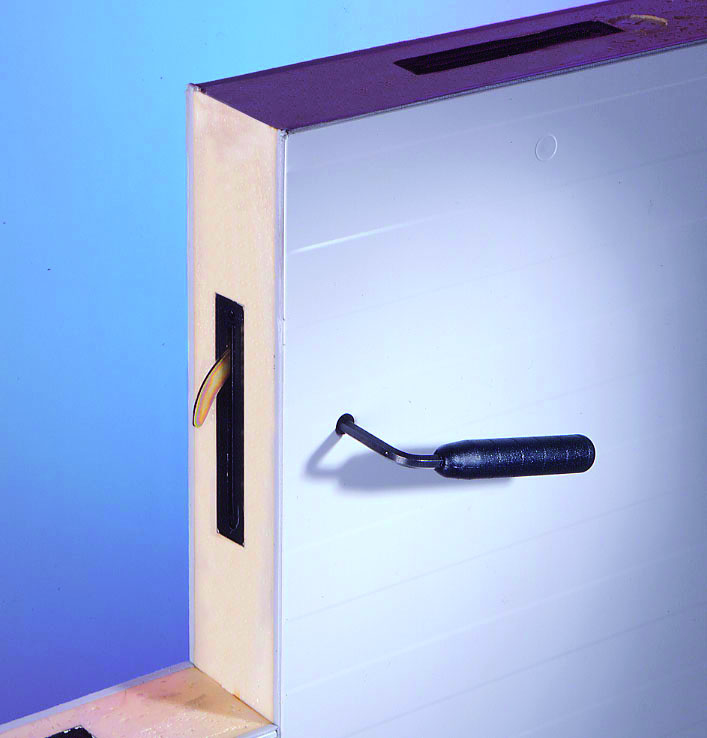

Partitions and ceiling consist in panels with camlocks
• Thickness 80 mm
• Iceberg white (close RAL 9010) powder-coated smooth steel
• Standard polyurethane foam core, High density, HCFC-free
Option : B,s2-d0
• Thermal conductivity λ = 0,023 W/m.K
• Density 40 kg/m3
• Uc value : 0,28 W/m².K
Floors consist in panels with camlocks
• Thickness 80 mm
• Lower facing : lacquered steel
• Upper facing : plywood 9 mm + phenolic resin with anti-skid hexagonal shape.
(No rolling load).
• High density polyurethane foam core, HCFC-free
Junctions

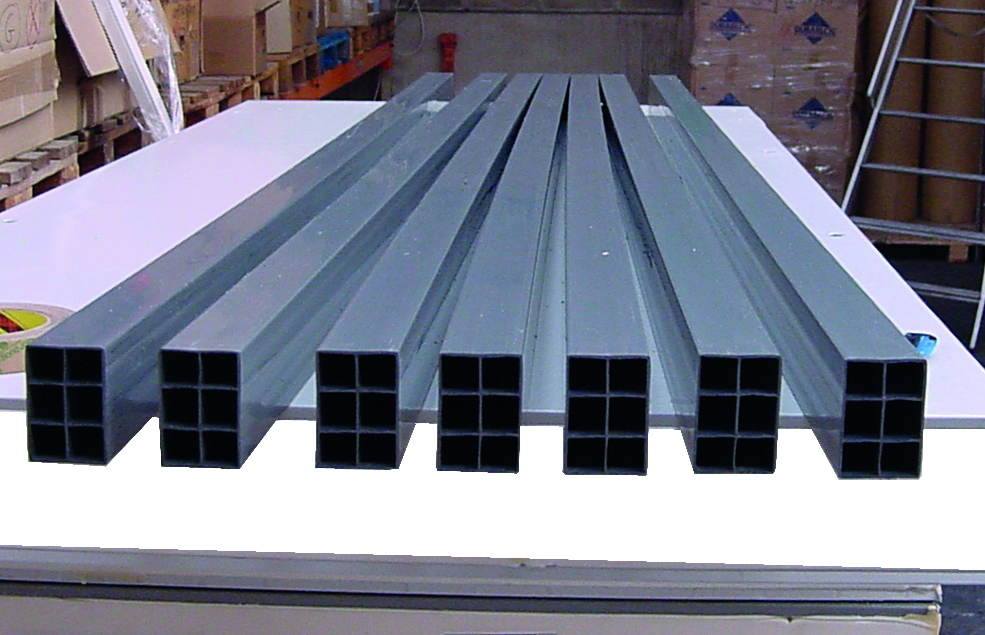

• 80 x 80 mm white (close to RAL9010) PVC angles profiles (filled with polyurethane for negative
temperature)
• Connection between floor and walls or walls and ceiling by direct camlocks.

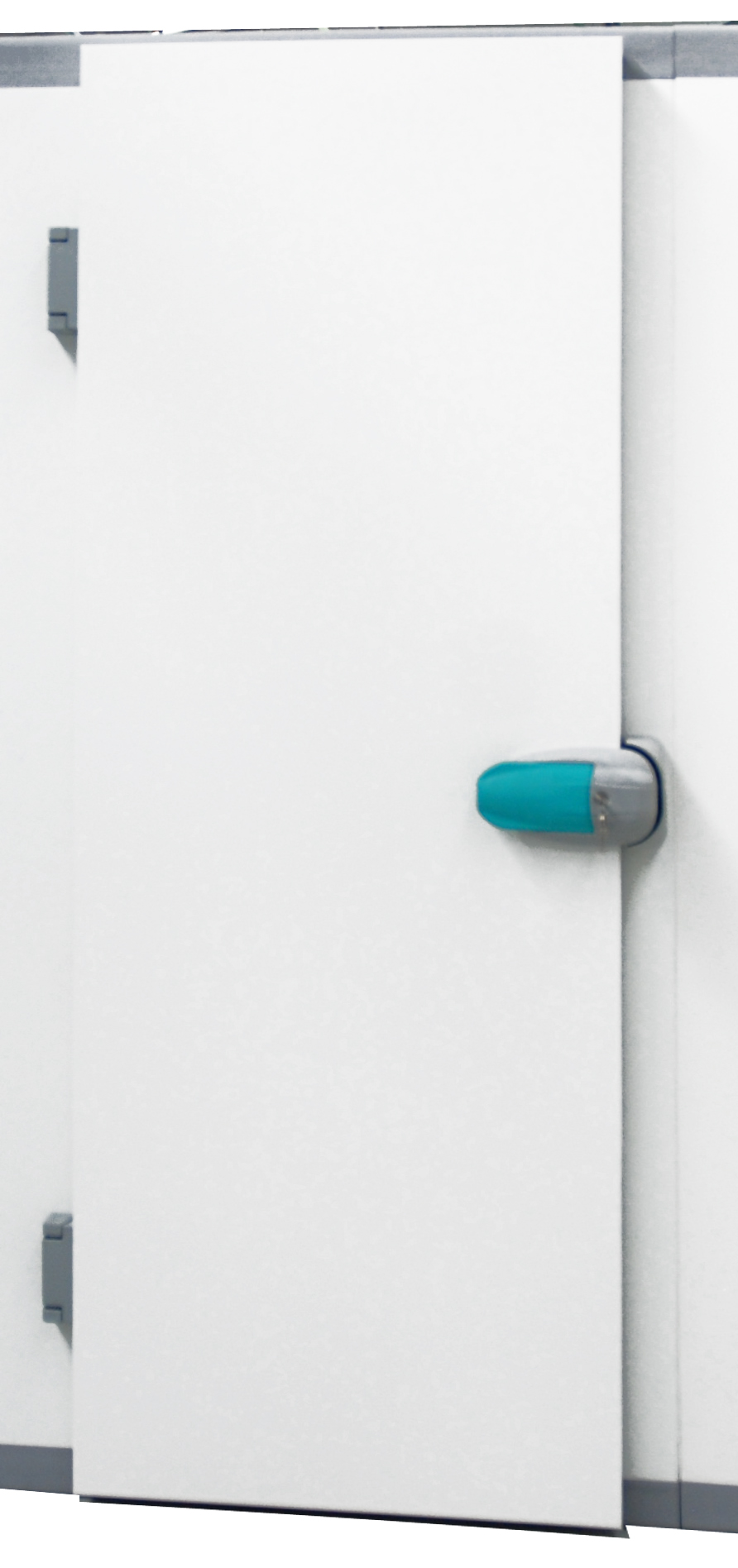

Isothermal hinged doors
• 200 x 80 cm
reversible for cells of height 200 cm
right hinged for cells of height 230 cm with possibility to
change on site
• Door leaf 80 mm thick, 2 sides in white PET 55 μm
scratch and corrosion resistant

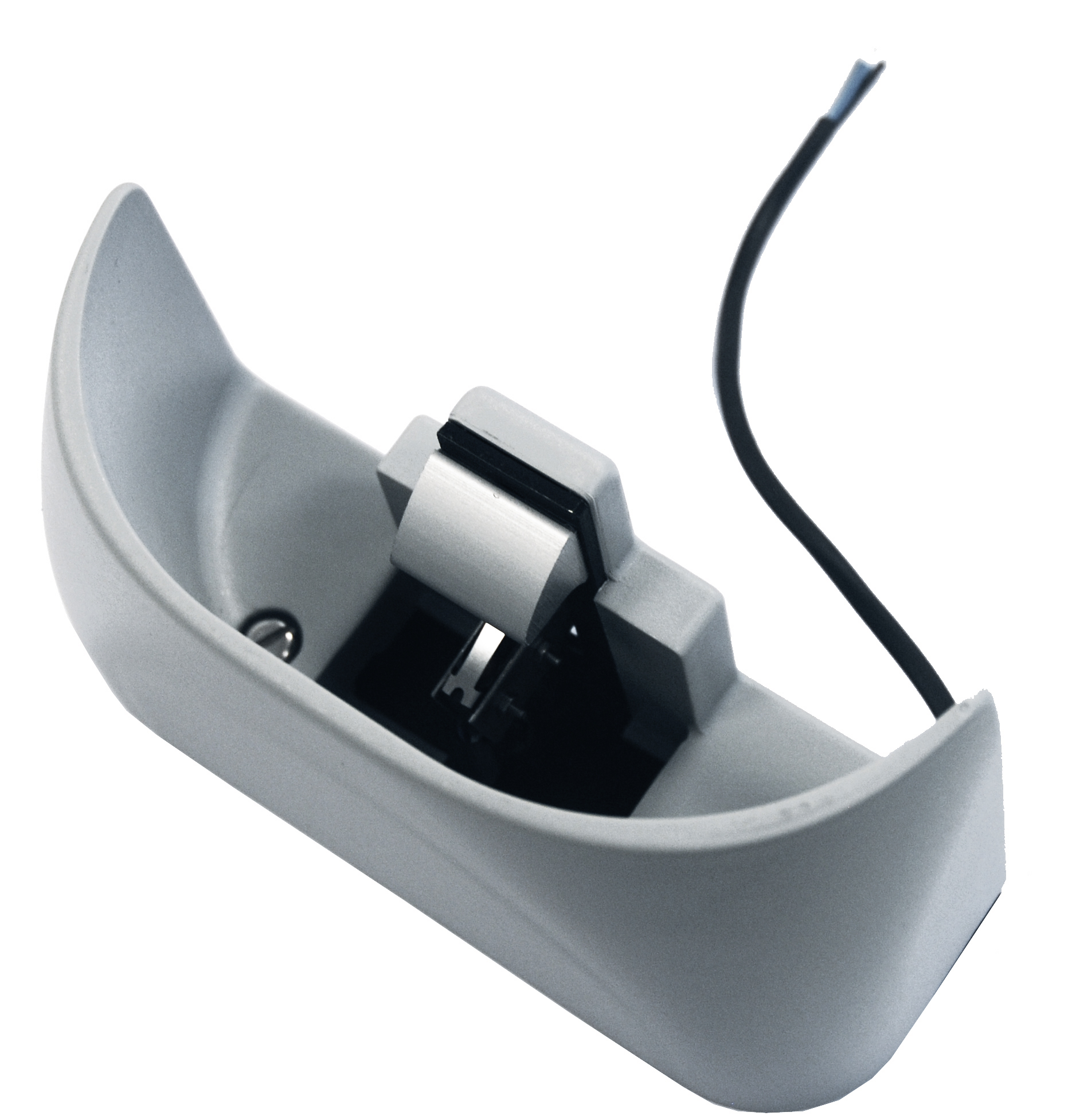

• Key lock with inside safety opening, 521 Dagard handle
(without electric contact)
• Heating frame in negative temperature
• Door-frame with integrated tubes for passage of cables
