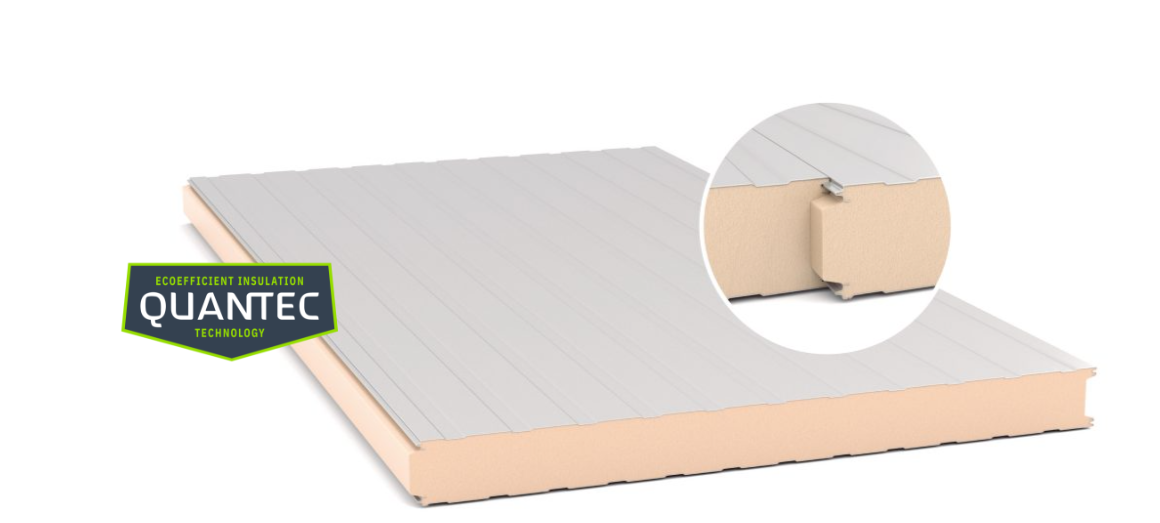

FRIGOPAP- A PANEL CREATED FOR THE REFRIGERATION INDUSTRY

FRIGOPAP WITH QUANTEC TECHNOLOGY

A PANEL CREATED FOR THE REFRIGERATION INDUSTRY

 UNIQUE TRIPLE-PANEL JOINT

IN THE MARKET

WITH MILLED FINISH

Thông tin sản phẩm

APPLICATIONS

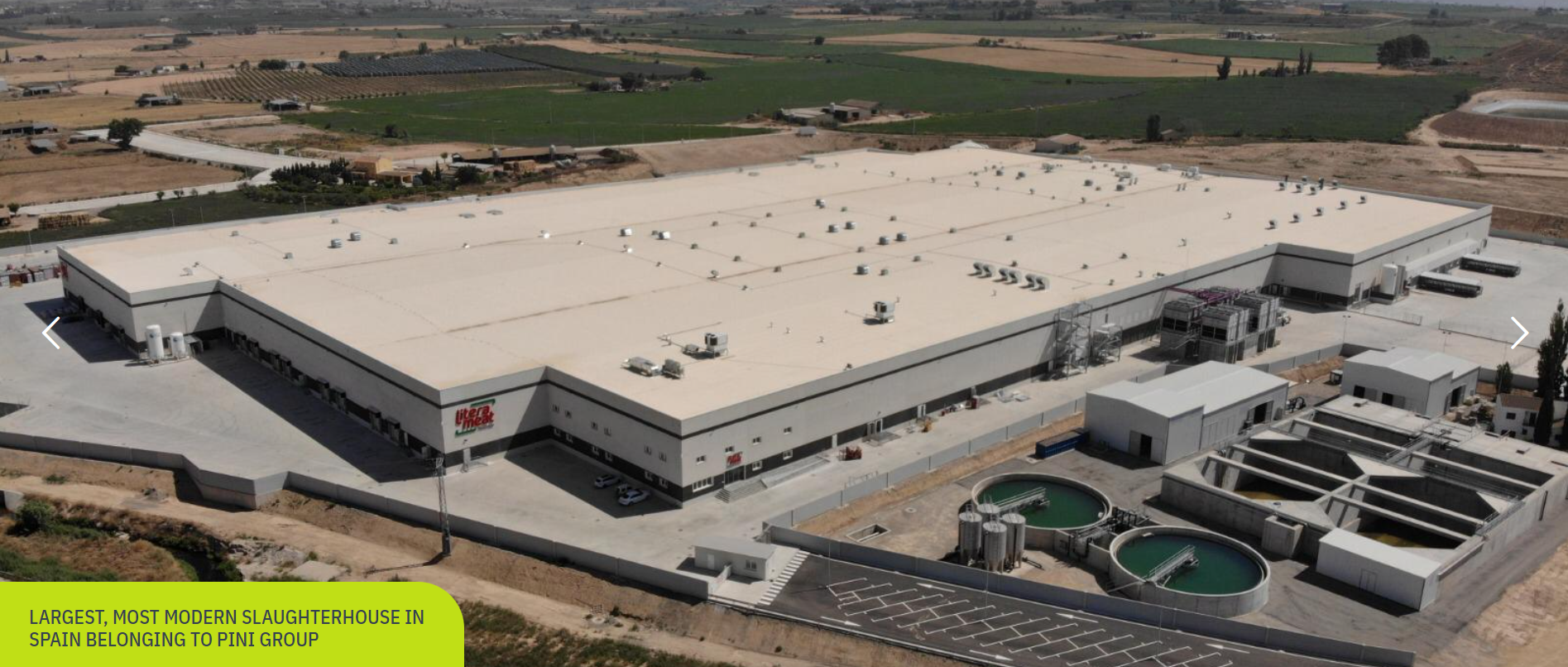

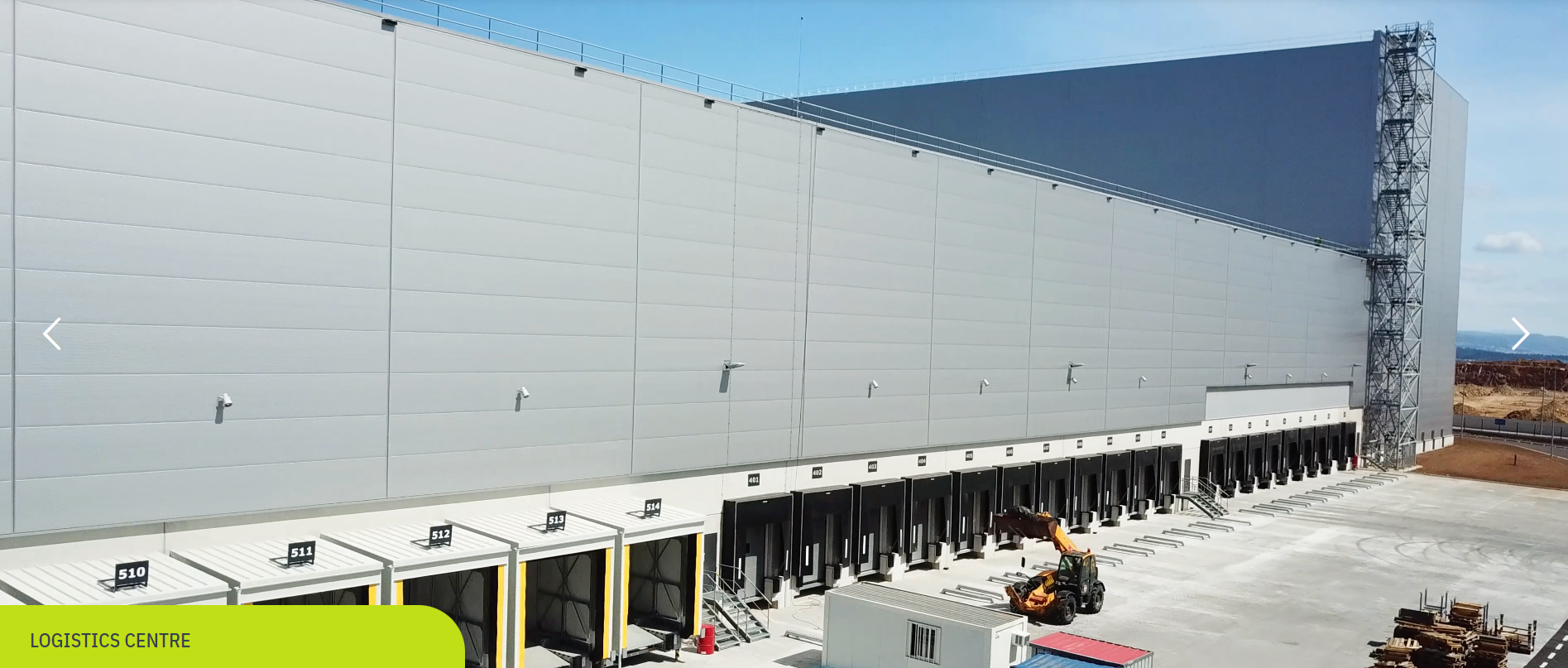

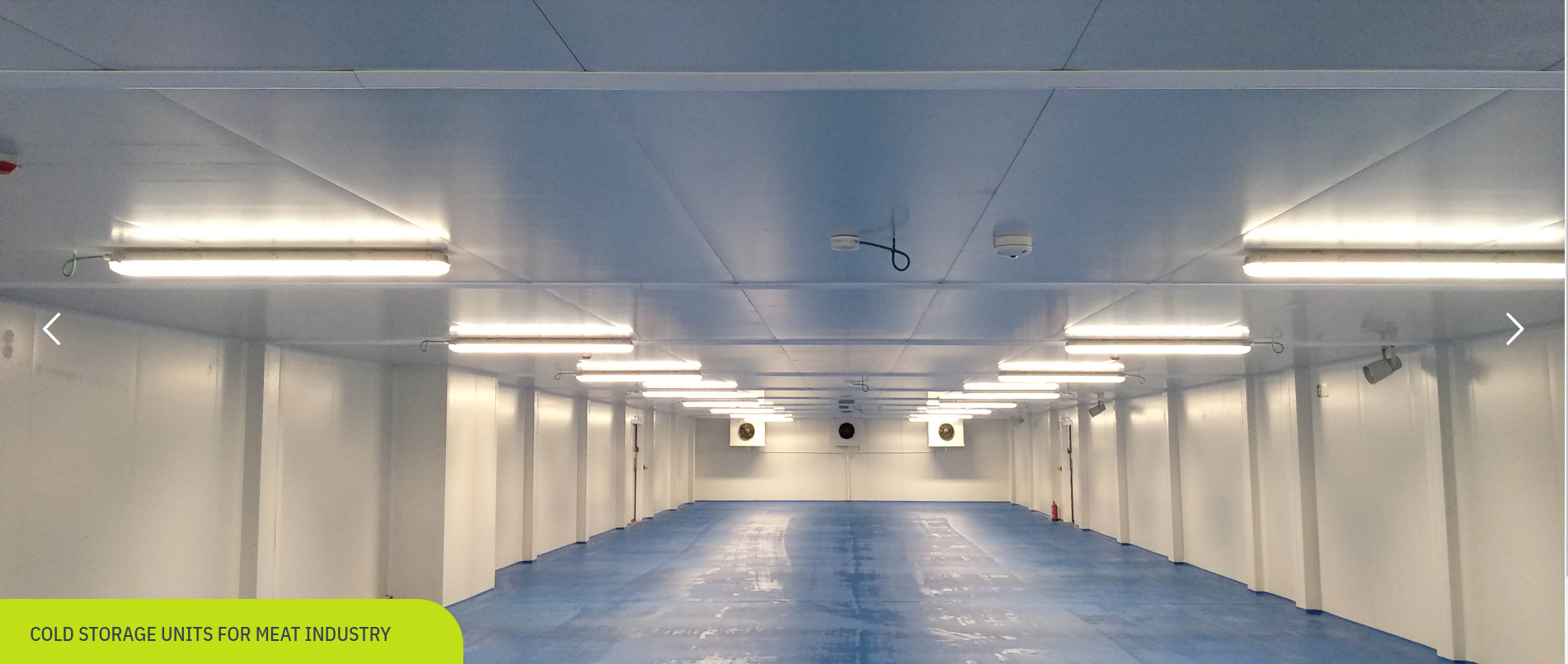

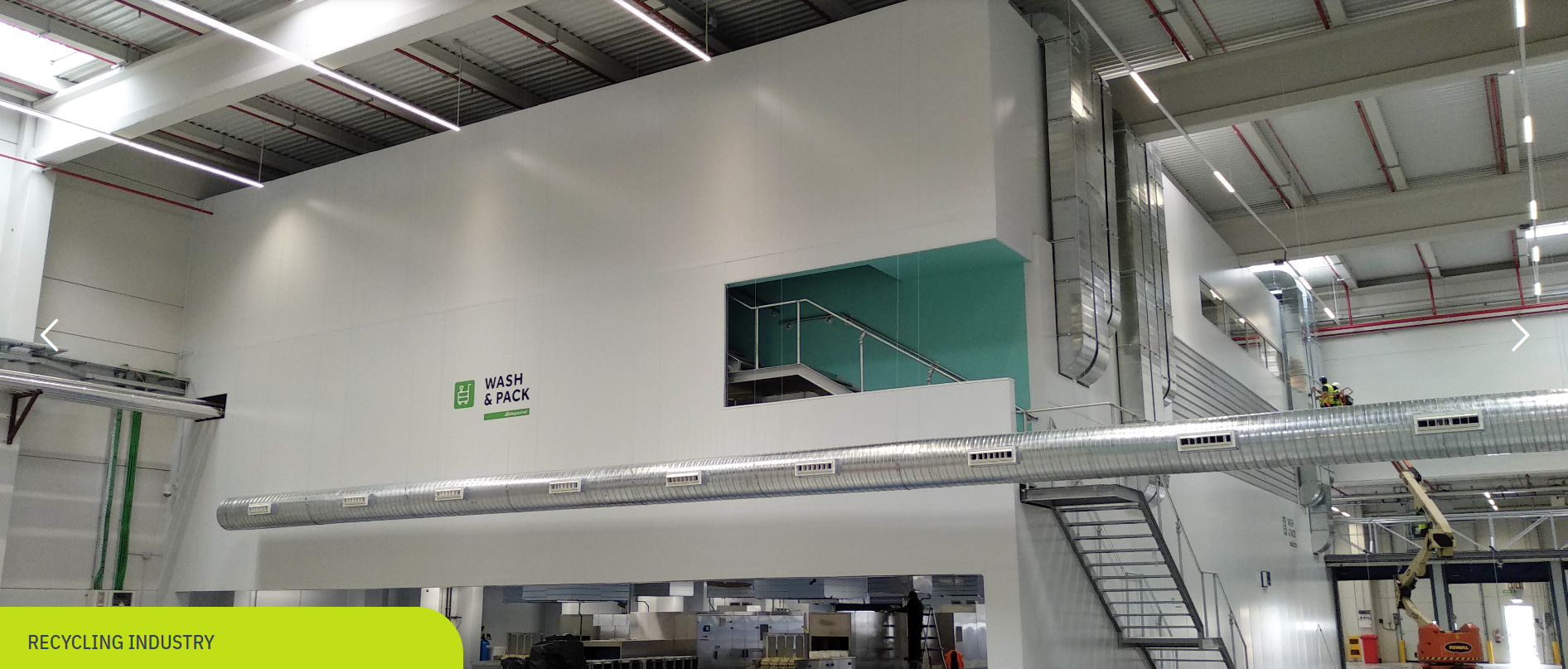

Industrial facilities, agrifood industry, logistics centres, cold storage warehouses, supermarkets, and all types of insulation for industrial unit construction systems.

THERMAL EFFICIENCY

Thermal conductivity coefficient λ of Frigopap+ = 0.0205 W/mK
Initial value λ = 0.019 W/mK (Applus). Thermal transmittance determined according to Standard UNE-EN 14509, considering the effect of ageing of the insulating core.



New “QUANTEC” PIR formula available with thermal efficiency of 0.0169 W/mK, best lambda in the market.



BASE MATERIAL

PRELACQUERED GALVANISED STEEL SHEET

  • S220/S250 steel from Z140 to Z275, 0.4 – 0.7 mm thick
  • EN 10346 for galvanised coating and EN 10169 for organic coatings

COATINGS

STANDARD COATING

  • White lacquered polyester, 25 µm

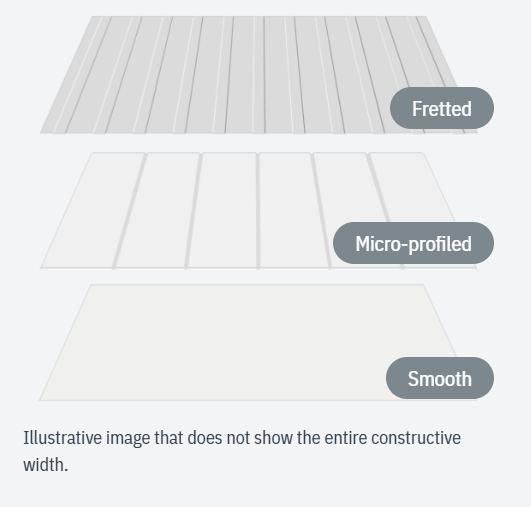

FINISH OPTIONS

  • Granite HDX Z275, 55 µm
  • HPS 200 µm
  • PVDF 33 and 55 µm
  • PVC 100 and 200 µm
  • PET 55 µm

COLOURS

  • Standard coating: Pyrenees White 1006
  • Other RAL colours on request

INSULATING CORE

PIR (POLYISOCYANURATE)

  • Density: 40 kg/m³ ± 2/li>
