COVERPAP - ROOF CONSTRUCTION PANEL

COMPLIANT WITH

FIRE PERFORMANCE

STANDARD B ROOF T1

Thông tin sản phẩm

APPLICATIONS

The COVERPAP roof panel can be used to clad all types of constructions and industrial units.

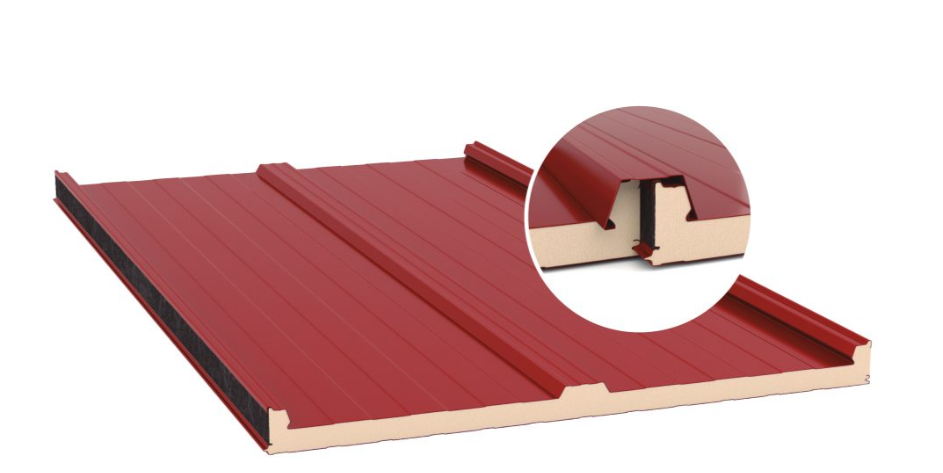

The panel is supplied with an easy-to-install joint seal profile that ensures the tightness of the system and conceals fixtures.



BASE MATERIAL



PRELACQUERED GALVANISED STEEL SHEET

  • S220/S250 steel from Z140 to Z275, 0.4 – 0.7 mm thick
  • EN 10346 for galvanised coating and EN 10169 for organic coatings

COATINGS



STANDARD COATING

  • White polyester lacquer, 25 µm

FINISH OPTIONS

  • Granite HDX Z275, 55 µm
  • HPS 200 µm
  • PVDF 33 y 55 µm
  • PVC 100 y 200 µm
  • PET 55 µm

COLOURS

  • Standard coating: Pyrenees White 1006
  • Other RAL colours on request

INSULATING CORE
PIP(POLYISOCYANURATE)
  • Density: 40 Kg/m³ ± 2
